Masonry Systems
Joint Reinforcement
Joint reinforcement is installed in horizontal mortar joints of masonry for shrinkage stress control. For joint reinforcement to effectively distribute stress it must be adequately bonded through the mortar so that the masonry and reinforcement act together.

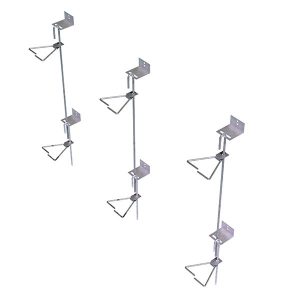

Adjustable Rubble Stone Systems
Tie-2R
The Tie-2R Adjustable Anchor System for Rubble Stone walls with masonry backup allows the mason to place anchors where they are needed.
- The joint reinforcement has deformed side rods, a cross rod and a heavy duty side rod projecting into the cavity.
- To this rod the stone mason attaches Helical Hook Anchors with an easy twist.
-
- Anchor Type HS is for horizontal
- Type HP for vertical joints
- The mason can fit the ties to the wall rather than having to build the wall to fit the ties.
- Rigid insulation is easily applied between the wythes.
Tie-HVR 190V
In the Tie-HVR 190V Adjustable Anchor System for Rubble Stone, the backup is reinforced with a truss type reinforcement. The mason then places the vertical rod into the collar joint by hooking onto the extended truss cross rod. Rubble stone can then be tied easily to backup using standard BLT-9 Flex-O-Lok® Ties. Ideal for when horizontal mortar joints do not align, and large vertical adjustability is required.

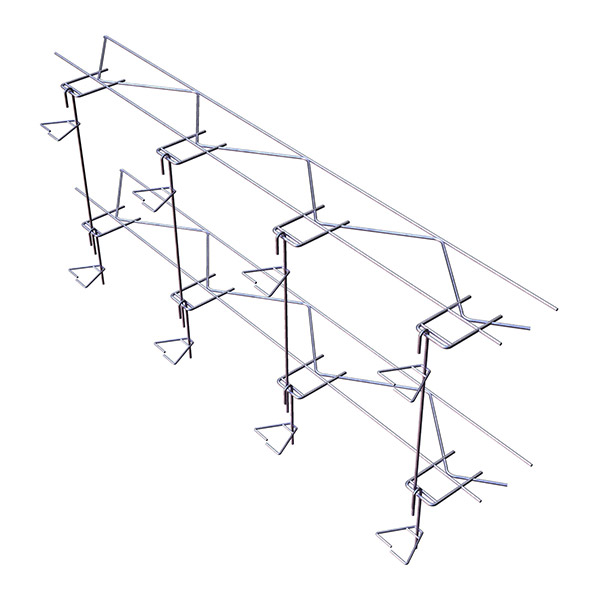

Tie-HVR 195V Truss Anchor System
The Tie-HVR 195V Truss Adjustable Anchor System for Rubble Stone features:
- This anchor system is for use with cavity or insulated walls.
- The flexible masonry tie has a pre-drilled hole to accept a vertical J-Hook.
- This configuration prevents in-and-out movement of the masonry tie, while allowing maximum vertical adjustability.
- This allows the mason to place the tie wherever the horizontal mortar joint lies.
Note: Ladder style also available (Product Tie-HVR 295V)
Tie-HVR 195VB Anchor System
The Tie-HVR195VB Adjustable Anchor System for Rubble Stone is ideal for use on concrete backup, metal stud or when masonry backup is already in place, and new veneer is being installed.
- The L-shaped plate is sized for any thickness of insulation, and has a slotted hole to accept the vertical J-Hook.
- Available with a welded restraint Flex-O-Lok® for standard 1” cavities or with a modified BLT-345-BT flexible tie for larger cavities.
Adjustable Reinforcement Systems
BL-36 Adjustable Truss Reinforcement

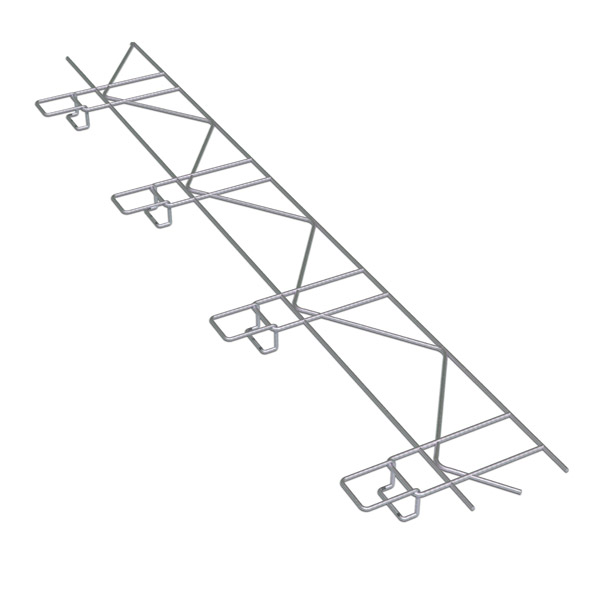

BL-36 is a truss-type masonry reinforcing for composite wall consisting of brick/block construction with box ties welded at each intersection and extending into the collar joint of a two wythe wall.
- A 2X-HOOK™ tie is then engaged to complete the system.
- Not recommended for use in cavity wall design.
- All 2X-HOOK™ ties are 3/16” (4.76 mm) in diameter and should be embedded a minimum of 1 1/2” (40 mm).
BL-37 Adjustable Truss Reinforcement
BL-37 is a truss-type masonry reinforcing with box ties welded at each intersection and extending into the cavity.
- A specially welded bar across the box tie restrains the out-of-plane movement of the two wythes.
- A 2X-HOOK™ tie is engaged to complete the tie system.
- All 2X-HOOK™ type ties are 3/16” (4.76 mm) in diameter and should be embedded a minimum of 1 1/2” (40mm).
Brite Basic Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

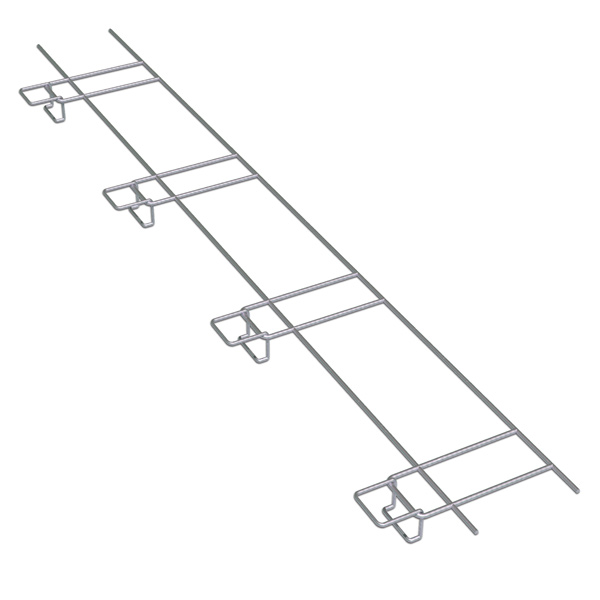

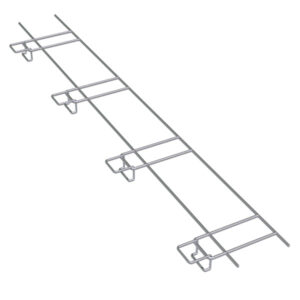

BL-40 Adjustable Ladder Reinforcement
The BL-40 consists of a ladder-type masonry reinforcing for composite walls with box ties lap-welded every 16” (400 mm) O.C. that extend into the collar joint.
- A 2X-HOOK™ pintle is then engaged to complete the system.
- The collar joint between wythes should be filled with mortar or grout to achieve maximum strength.
- Not recommended for use in cavity wall systems.
- Minimum embedment of tie is 1 1/2” (40 mm).
- A fabricated ladder-type reinforcement designed to be embedded in the horizontal mortar joints of cavity, veneer and composite masonry walls.
Brite Basic Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

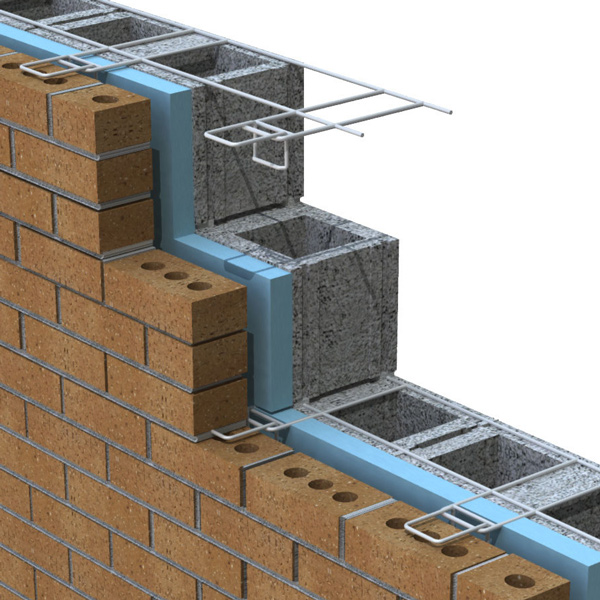

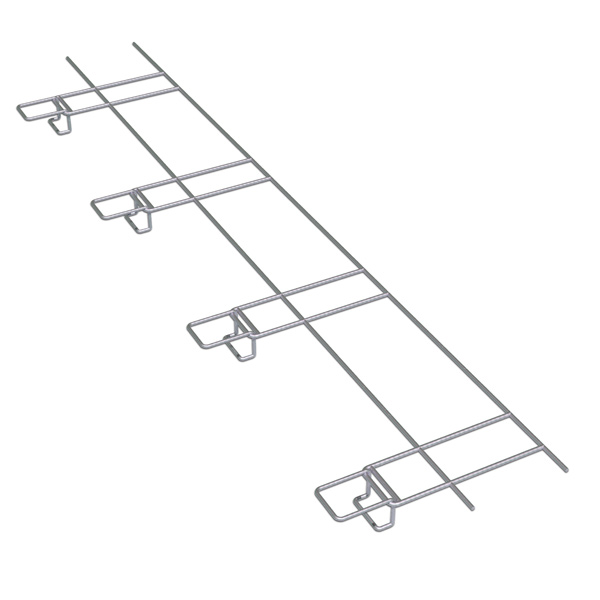

BL-42 Adjustable Ladder Reinforcement
BL-42 is a ladder-type masonry reinforcing with box ties lap-welded every 16” (400 mm) O.C. extending into the cavity.
- A specially welded cross-bar across the box tie restrains the out-of-plane movement of the two wythes.
- A 2X-HOOK™ wire tie is engaged to complete the tie system.
- All hook ties are 3/16” (4.76 mm) in. dia.
- Minimum tie embedment is 1 1/2” (40 mm).
Brite Basic Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
Ladder Joint Reinforcement
BL-10 Ladder Reinforcement
The BL-10 consists of two parallel side rods with cross rods welded at 16” (400 mm) O.C., thus forming a ladder configuration.
- Overall measurement (side-to-side rod) is approximately 2” (50 mm) less than the nominal wall thickness.
- A fabricated ladder-type reinforcement designed to be embedded in the horizontal mortar joints of masonry walls
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
BL-11 Ladder Reinforcement
The BL-11 consists of three parallel side rods with cross rods welded at 16” (400 mm) O.C.
- Two side rods act as backup masonry reinforcement and the third rod and cross rod act as a continuous tie and reinforcement for the facing.
- A fabricated ladder-type reinforcement designed to be embedded in the horizontal mortar joints of composite, veneer and cavity masonry walls.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

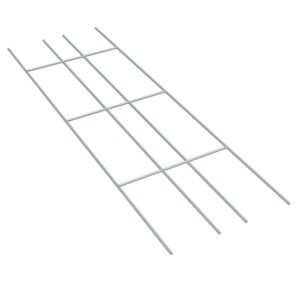

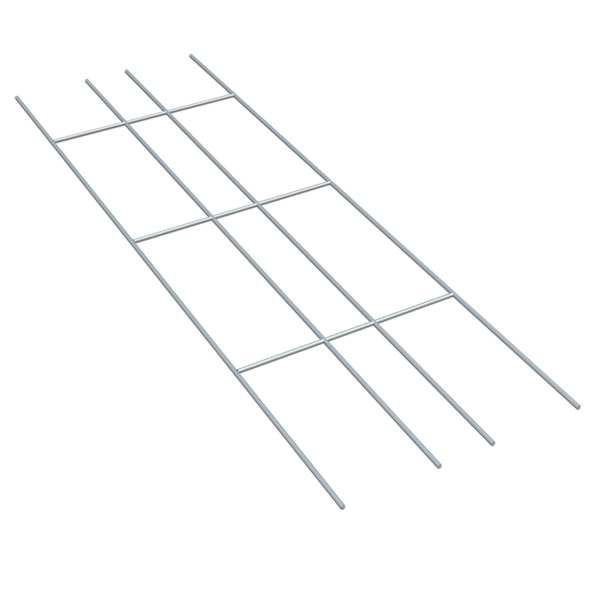

BL-12 Ladder Reinforcement
The BL-12 consists of four parallel side rods with cross rods welded at 16” (400 mm) O.C.
- Two side rods act as back-up masonry reinforcement and the other two side rods and cross rods act as a continuous tie and reinforce the other wythe.
- A fabricated ladder-type reinforcement designed to be embedded in the horizontal mortar joints of cavity, veneer and composite masonry walls.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

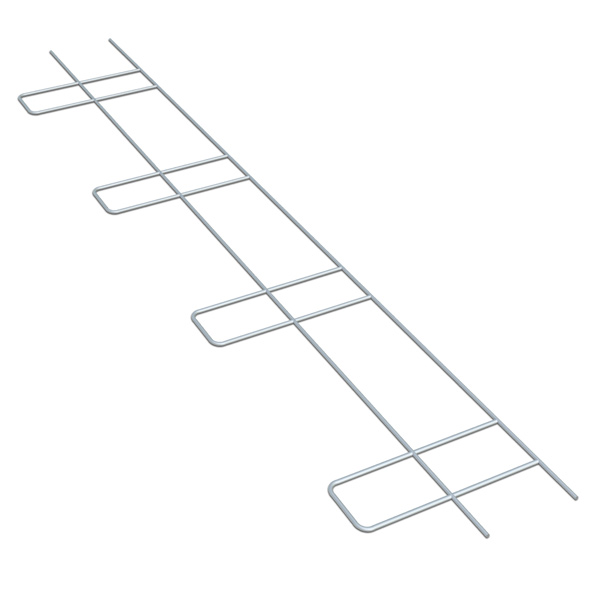

BL-21 Ladder Reinforcement
The BL-21 consists of ladder-type masonry reinforcing with box ties lap-welded every 16” (400 mm) O.C.
- They extend across the cavity or collar joint into the outer wythe and should be embedded a minimum of 1-1/2“ (40 mm) but no closer than 5/8” (16 mm) from the outer face.
- A fabricated ladder-type reinforcement designed to be embedded in the horizontal mortar joints of cavity, veneer and composite masonry walls.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
BL-40 Adjustable Ladder Reinforcement
The BL-40 consists of a ladder-type masonry reinforcing for composite walls with box ties lap-welded every 16” (400 mm) O.C. that extend into the collar joint.
- A 2X-HOOK™ pintle is then engaged to complete the system.
- The collar joint between wythes should be filled with mortar or grout to achieve maximum strength.
- Not recommended for use in cavity wall systems.
- Minimum embedment of tie is 1 1/2” (40 mm).
- A fabricated ladder-type reinforcement designed to be embedded in the horizontal mortar joints of cavity, veneer and composite masonry walls
Brite Basic Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
BL-42 Adjustable Ladder Reinforcement
BL-42 is a ladder-type masonry reinforcing with box ties lap-welded every 16” (400 mm) O.C. extending into the cavity.
- A specially welded cross-bar across the box tie restrains the out-of-plane movement of the two wythes.
- A 2X-HOOK™ wire tie is engaged to complete the tie system.
- All hook ties are 3/16” (4.76 mm) in. dia.
- Minimum tie embedment is 1 1/2” (40 mm).
Brite Basic Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
Truss Joint Reinforcement

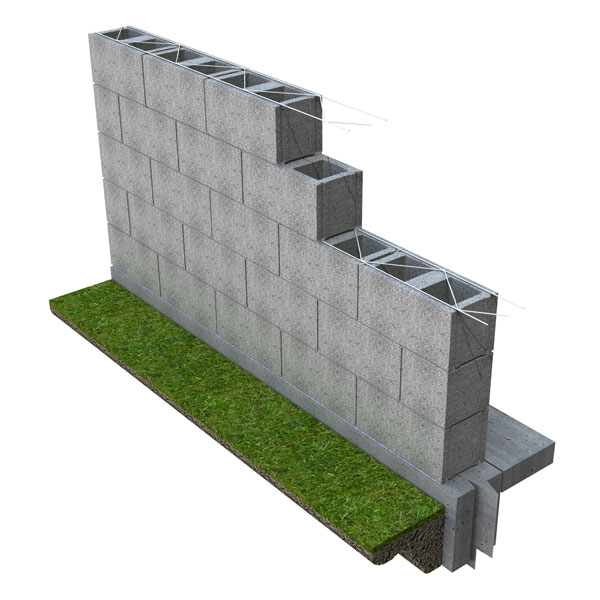

BL-30 Truss Reinforcement
BL-30 truss-type reinforcement consists of 2 side-rods welded to a continuous diagonally shaped cross-rod forming a truss design with alternating welds not exceeding 8” (200 mm) O.C. overall.
- For use in single-wythe walls.
- A fabricated continuous truss-type reinforcement designed to be embedded in the horizontal mortar joints of masonry walls.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

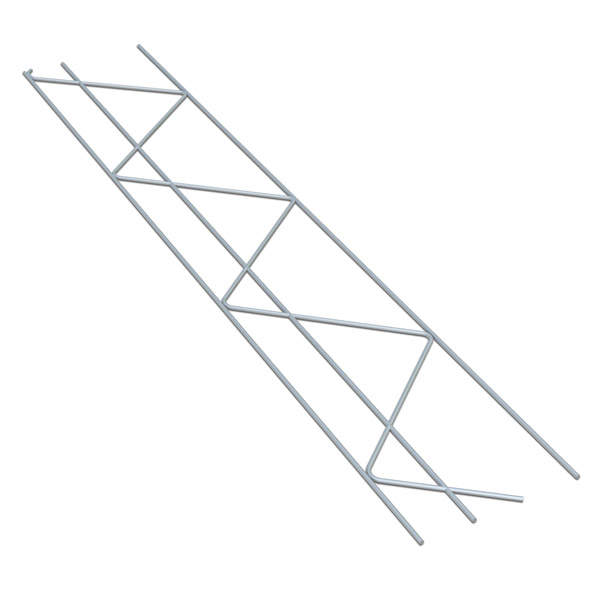

BL-31 Truss Reinforcement
BL-31 is a continuous truss-type reinforcement consisting of three (3) side-rods welded to a continuous diagonally formed cross rod.
- For use in composite or cavity walls.
- Not recommended for insulated cavity walls.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

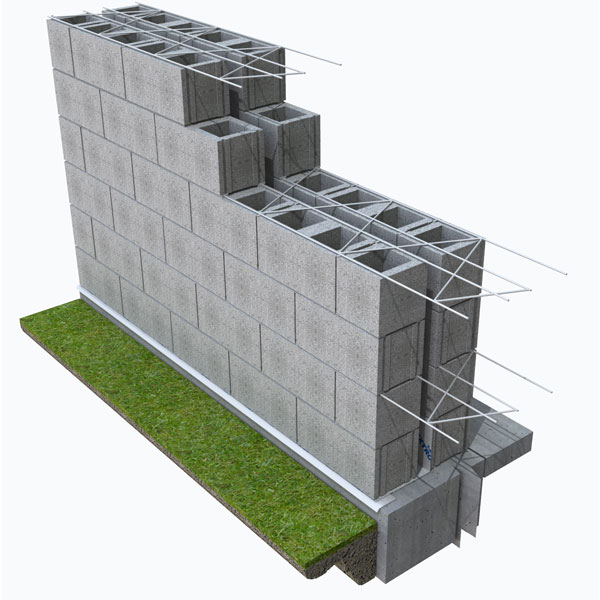

BL-32 Truss Reinforcement
BL-32 is a continuous truss-type reinforcing consisting of four (4) side-rods welded to continuous diagonally formed cross rods.
- For use in double-wythe cavity walls.
- Not recommended for insulated cavity walls.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

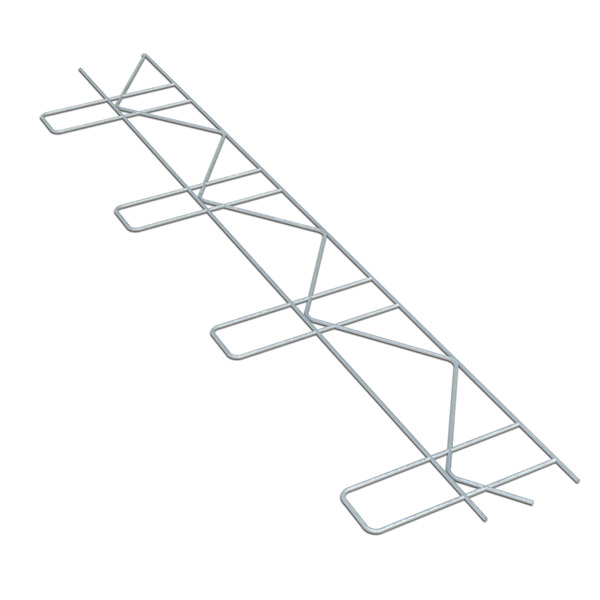

BL-34 Truss Reinforcement
BL-34 is a truss-type masonry reinforcing with box ties lap-welded every 16” (400 mm) O.C. They extend across the cavity or collar joint into the outer wythe and should be embedded a minimum of 1-1/2“ (40 mm) but no closer than 5/8” (16 mm) from the outer face.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
BL-36 Adjustable Truss Reinforcement
BL-36 is a truss-type masonry reinforcing for composite wall consisting of brick/block construction with box ties welded at each intersection and extending into the collar joint of a two wythe wall.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
BL-37 Adjustable Truss Reinforcement
BL-37 is a truss-type masonry reinforcing with box ties welded at each intersection and extending into the cavity.
- A specially welded bar across the box tie restrains the out-of-plane movement of the two wythes.
- A 2X-HOOK™ tie is engaged to complete the tie system.
- All 2X-HOOK™ type ties are 3/16” (4.76 mm) in diameter and should be embedded a minimum of 1 1/2” (40mm).
Brite Basic Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS
Concrete Inserts
BLOK-LOK Concrete Wedge inserts are embedded into concrete slabs. Nail holes in the back of the insert allow easy nailing to forms. When the forms are stripped, the open face of the insert is flush with the concrete. The beveled head of the askew head bolt engages the internal wedge shape of the insert and produces an automatic tightening action when a load is placed on it.

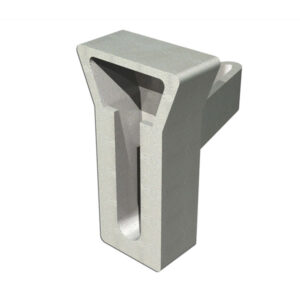

HW-340 : Malleable Iron Wedge Inserts
HW-340 Malleable Iron Wedge Inserts are embedded into concrete slabs to allow for secure and adjustable attachment of materials to a concrete structure.
- HW-340 Standard Wedge Insert must be installed at least 1-1/2″ from bottom of slab.
- Nail holes in the back of the insert allow easy nailing to forms.
- When the forms are stripped, the open face of the insert is flush with the concrete.
- Used with Askew Head Bolt, the beveled head of the askew head bolt engages the internal wedge shape of the insert and produces an automatic tightening action when a load is placed on it.
TECH DATA:
- Shear: 16,650 lbs.
- Tension: 13,093 lbs.
- Concrete Strength: 4,125 psi
- Torque: 150 ft./lbs

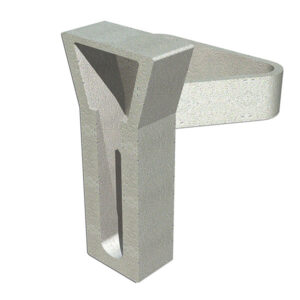

LW-340 : Malleable Iron Wedge Inserts
The LW-340 Hot Galvanized long wedge insert is suitable for use at the bottom of the slab or when additional vertical adjustability is needed.
- Nail holes in the back of the insert allow easy nailing to forms.
- When the forms are stripped, the open face of the insert is flush with the concrete.
- Used with Askew Head Bolt, the beveled head of the askew head bolt engages the internal wedge shape of the insert and produces an automatic tightening action when a load is placed on it.
TECH DATA:
- Shear: 17,305 lbs.
- Tension: 17,367 lbs.
- Concrete Strength: 4,125 psi
- Torque: 150 ft./lbs
Sharktooth Insert

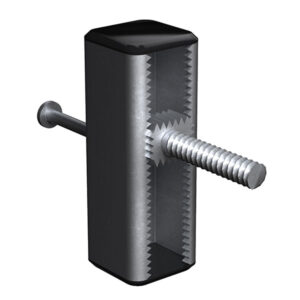

The Sharktooth Insert has various applications and is capable of developing working loads up to 8,000#/ft. in both shear and tension. It is adjustable along virtually its entire length, and also allows in and out adjustment, while still resisting shear and tension loads. It is fabricated in lengths from 3″ to 12′-0″ long, and can be custom designed for project-specific applications, such as radiuses or specific lengths.
- Serrated shark-tooth design allows insert to resist high vertical shear loads
(eliminates potential for vertical slip due to inadequate bolt torque, as with wedge style inserts). - Allows for substantial vertical adjustment along full length of insert.
- Rebar interference not an issue (unlike post-installed expansion bolts).
- Additional rebar hairpins not required to develop published working loads.
- Welded connections not required! Nut or bolt connection into insert allows for easy installation and adjustment.
- Bolting hardware is U.S. standard thread (metric thread can be difficult to source).
Stainless Steel SDS
Hot Dip Galvanized SDS
Cold Rolled Steel SDS
Control Joints
Control joint products are used to reduce restraint and permit longitudinal movement. They are placed where cracking is likely to occur due to excessive tensile stress.
NS Neoprene Sponge
Blok-Lok Neoprene Sponge is a closed-cell, non-absorbent horizontal and vertical joint filler used in a variety of masonry applications.
- Neoprene allows expansion and prevents clogging of joints with mortar.
- Neoprene is used to reduce restraint and permit movement.
- Neoprene is placed where cracking is likely to occur due to excessive tensile stress.

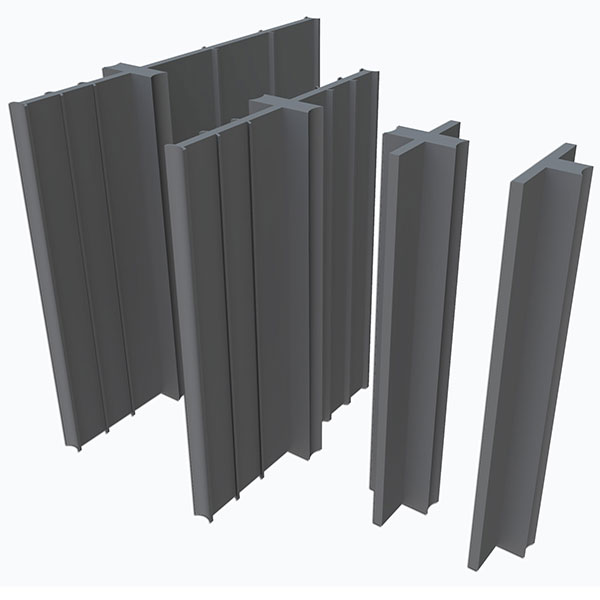

RS Series Rubber Control Joint
The RS Series rubber control joint is an extruded rubber material designed for masonry walls at control joints.
- RS Series rubber control joints are used to reduce restraint and permit longitudinal movement.
- RS Series rubber control joints are placed where cracking is likely to occur due to excessive tensile stress.

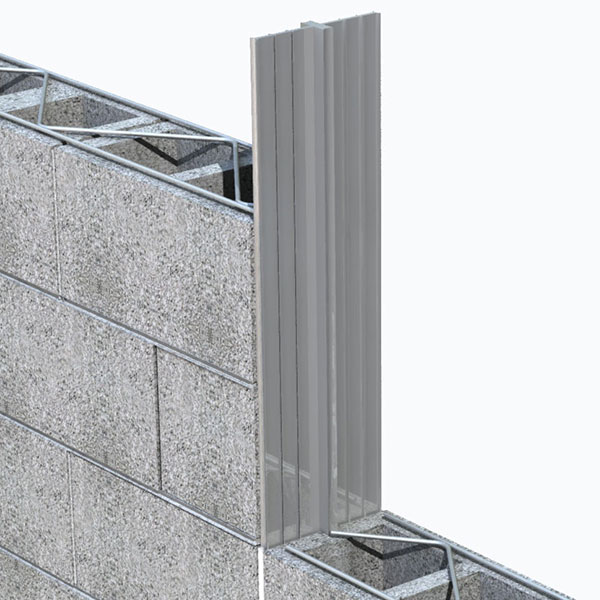

VS Series PVC Control Joint
The VS Series is a complete line of polyvinyl chloride control joints suitable for various wall conditions.
- VS Series PVC control joints are used to reduce restraint and permit longitudinal movement.
- VS Series PVC control joints are placed where cracking is likely to occur due to excessive tensile stress.
Rebar Positioners
RB Rebar Postioners
RB Rebar Positioners are for positioning and stabilizing rebars installed into concrete block cores in reinforced masonry. The z-shaped wire bridges cell of block while bends rest on shell.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

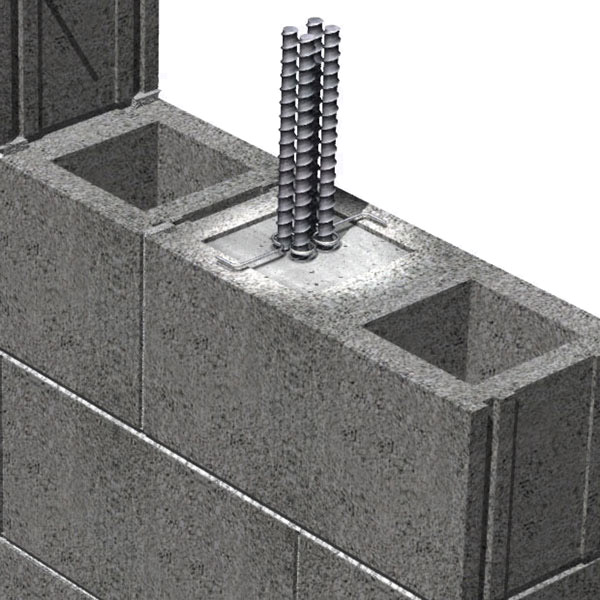

RB-TWIN Rebar Postioners
RB-TWIN Rebar Positioners are similar to the standard RB model but with double loops to hold 4 rebars.
- For positioning and stabilizing rebars installed into concrete block cores in reinforced masonry.
- The z-shaped wire bridges cell of block while bends rest on shell.
Brite Basic Wire SDS
Mill Galvanized Steel Wire SDS
Hot Dip Galvanized Coating SDS
Stainless Steel SDS

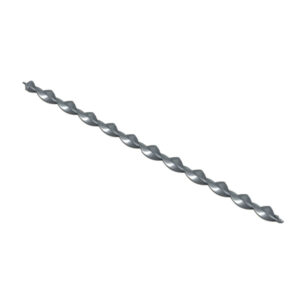

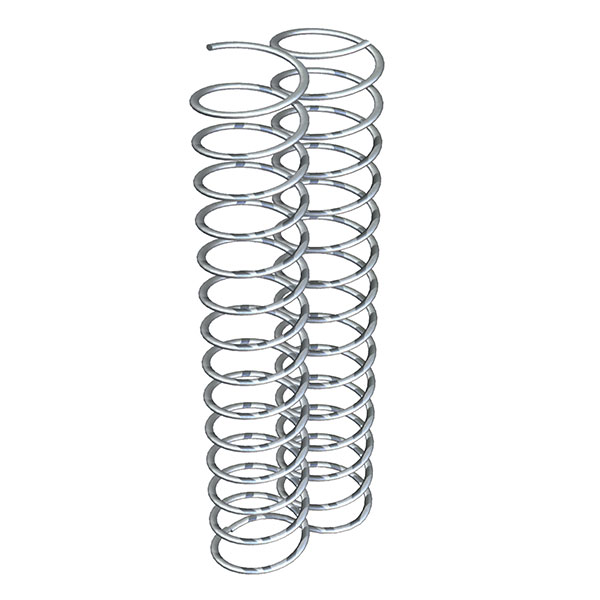

SPYRA-LOX® Rebar Lap-Joint Tie
The SPYRA-LOX® Rebar Lap-Joint Tie requires no tools, it eliminates the cumbersome procedure of tying lap-joined rebars together in reinforced walls.
- Increases worker productivity. Reduces lifting-height of block over rebars.
- Flow-through design allows grout to uniformly encase rebars at overlap.
Installation:
SPYRA-LOX® Rebar Lap-Joint Tie Installation Procedure (PDF)
Correct installation procedure allows for systematic placement of rebars to accomodate varying overlap requirements.
Masonry Accessories
Insul-Lok™
Insul-Lok is a cross-slot polyethylene retainer that simply slides over Blok-Lok plate anchors and uses a friction fit to secure rigid insulation to the backup, reducing wall penetrations and labor costs associated with clips that must be hammered in.

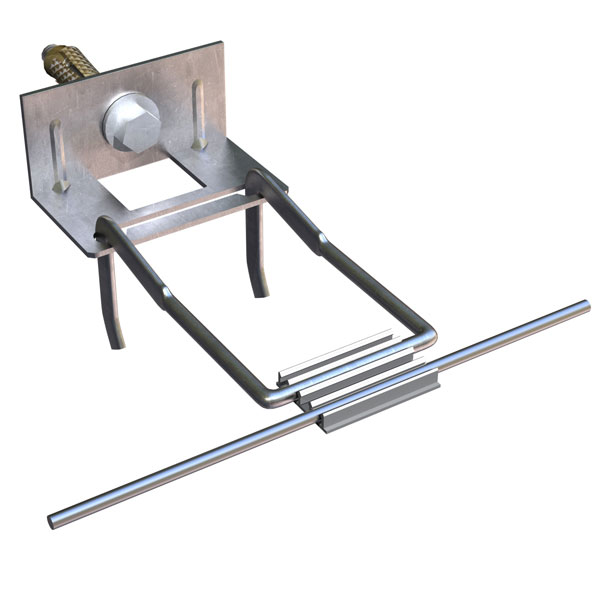

Seismiclip® Interlock System (S.I.S.)
The Seismiclip® (S.I.S.) will accept standard H&B Wire Ties and Continuous Wire. Horizontal Joint Reinforcement Wire and Masonry Tie are snapped into the seismic clip and fully surrounded by mortar. This allows all components to function integrally as a single unit.

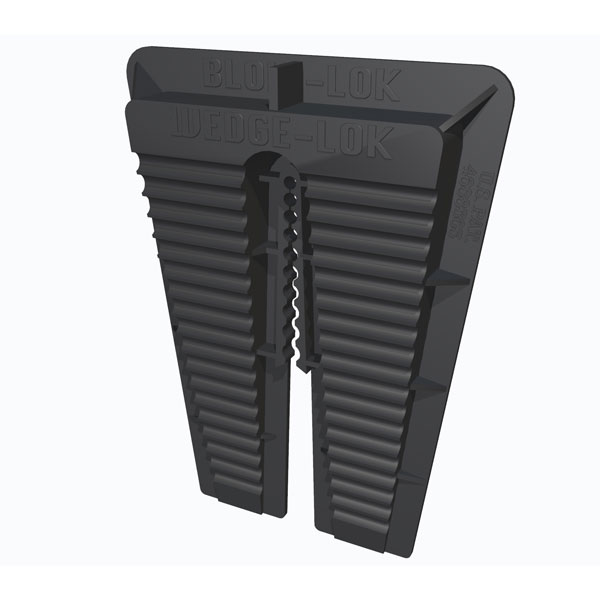

Wedge-Lok®
The Wedge-Lok® fastener is a unique, plastic device that uses the principle of leverage to wedge between the masonry reinforcing or ties and cavity wall insulation. The wedge design and rib-faced locking system guarantees positive contact of insulation with the substrate.
Weep Holes - 341

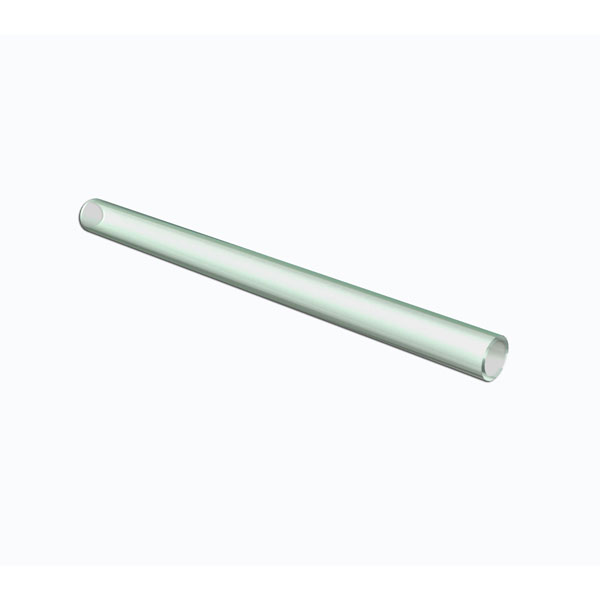

The 341 tubular weep hole, made from medium-density polyethylene, creates an unobstructed passage for water and moisture to exit masonry cavity walls
.

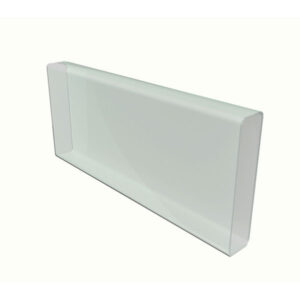

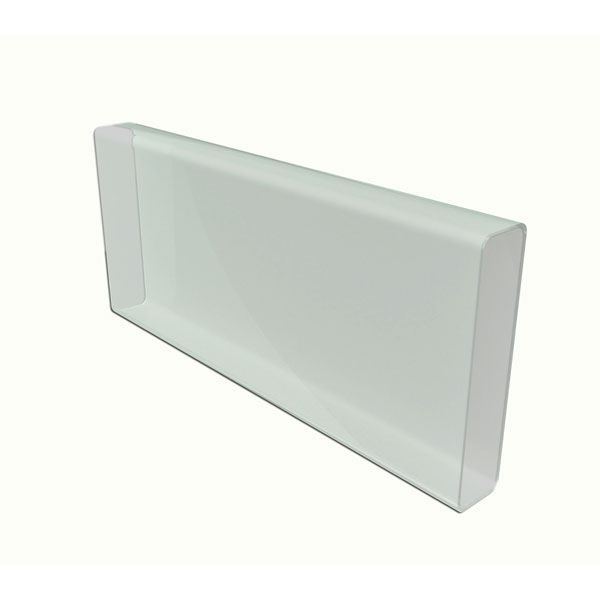

Weep Holes - 342
The 342 rectangular weep hole, made from medium-density polyethylene, creates an unobstructed passage for water and moisture to exit masonry cavity walls.

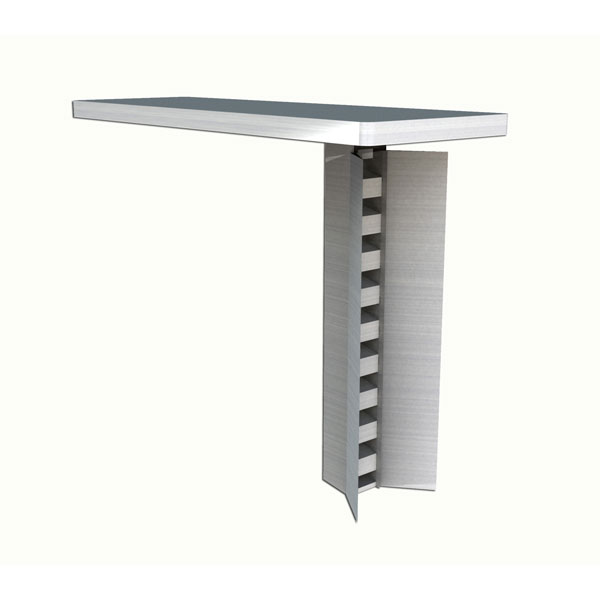

Weep Holes - 343
The 343 weep hole, made from injection-molded flexible PVC, creates an unobstructed passage for water and moisture to exit masonry cavity walls.
Weep Holes - CELLVENT
Blok-Lok’s CELLVENT, made from flexible polypropylene-copolymer plastic, creates an unobstructed passage for water and moisture to exit masonry cavity walls.
Anchors & Ties
Flex-O-Lok® Ties
Flex-O-Lok® Ties – Adjustable ties are recommended as a veneer or cavity wall tie to connect to structural steel.
BLT-9 Flex-O-Lok® Ties
BLT-9 Flex-O-Lok® ties are a flexible tie for tying masonry walls to structural back-up. Provides lateral restraint while permitting horizontal and vertical movement.
BLT-9 Seismic Flex-O-Lok® Ties
BLT-9 Seismic Flex-O-Lok® ties are flexible tie made with a seismic tab welded to the leg for seismic applications for tying masonry walls to structural back-up. Provides lateral restraint while permitting horizontal and vertical movement.
Partition Top Anchors
BL-LSA1 Lateral Support Anchor
BL-LSA1 lateral support anchors provide lateral shear resistance at the upper limit of masonry walls, they permit vertical deflection of the slab above, without transferring compressive loads to the masonry wall below.
BL-LSA2 Lateral Support Anchor
BL-LSA2 lateral support anchors provide lateral shear resistance at the upper limit of masonry walls, they permit vertical deflection of the slab above, without transferring compressive loads to the masonry wall below.
PTA-364
The PTA-364 Partition Top Anchor, suitable for construction using steel or concrete, provides lateral shear resistance at the upper limit of masonry walls.
PTA-420-HS
PTA-420 HS partition top anchors—clear butyrate PTA Tube with polyethylene expansion filler is placed over rod anchor, which has been attached to concrete or steel. The vertical joint is then filled with mortar, fully surrounding tube.
PTA-422 Partition Top Anchor
PTA-422 partition top anchors provide lateral shear resistance at the upper limit of masonry walls, they permit vertical deflection of the slab above, without transferring compressive loads to the masonry wall below.
Stone Anchors & Accessories
Some of the more commonly used Blok-Lok® Stone Anchors can be found here – Stone Anchors
When more complex systems are required due to intricate and rigorous design criteria, Blok-Lok® has the technical expertise to get the job done.
Gripstay Anchors & Channels
BL-360 Gripstay Channel
The BL-360 Gripstay Channel welds onto steel web or flange to accept any type of Gripstay Anchor.
BL-361 Gripstay Channel
The BL-361 Gripstay Channel is furnished with welded straps top and bottom for embedment into CMU backup. Accepts any Gripstay Anchor for masonry or stone.
BL-362 Gripstay Channel
The BL-362 Gripstay Channel furnished with built-in end clips for attachment to masonry. Accepts any Gripstay Anchor for masonry or stone.
BL-362-C Gripstay Channel
The BL-362-C is a Continuous Gripstay Channel for use on backup block. Accepts any Gripstay Anchor for masonry or stone
BL-362-CX Gripstay Channel
The BL-362-CX is a continuous Gripstay Channel for use on backup block with insulation.
Factory-welded prongs bridge the insulation and abut the concrete block (or other substrate), affording independent, positive anchorage. The integrity of the insulation is maintained while compression due to positive loads is prevented.
Made to order with welded legs to accommodate any thickness insulation/wallboard.
BL-363 Flexible Gripstay Anchor
The BL-363 – Flexible Gripstay Anchor permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of plane.
BL-364 Corrugated Flexible Gripstay Anchor
The BL-364 Corrugated Gripstay Anchor ties masonry to steel columns, concrete or existing walls. The gripstay head fits any Blok-Lok Gripstay Channel (tying masonry to steel columns, concrete, or existing walls).
BL-365 Bent Gripstay Anchor
The BL-365 Bent Gripstay Anchor ties masonry to steel columns, concrete or existing walls.
Veneer Anchors
2-Seal™ - Concrete Seal Tie
Ties the masonry veneer to the substrate. The Concrete Seal Tie’s screw portion has special alternating threads making it suitable for use with concrete, CMU, wood stud or brick backup, and is provided with EPDM sealing washers.
2-Seal™ Thermal Concrete Wing Nut Anchor
The Thermal Concrete 2-Seal™ Wing Nut is an innovative single screw veneer tie for concrete, CMU, or wood stud construction. The anchor features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.
2-Seal™ Thermal Wing Nut Anchor
The Thermal 2-Seal™ Wing Nut Anchor is an innovative single screw veneer tie for metal stud construction, it features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.
2-Seal™ Tie
The 2-SEAL™ TIE is an innovative single screw veneer tie for metal stud construction
BL-407 Veneer Anchor
The BL-407 is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated.
BL-507 Veneer Anchor
The BL-507 is a Cavity Wall Anchoring System for Masonry Construction. The BL-507 consists of a one-piece 16 gauge base plate embedded in the masonry backup.
BL-523 Brass Expansion Bolt
The BL-523 masonry fastener is for fastening anchors to concrete, block, brick and into mortar joints.
BL-607 Veneer Anchor
The BL-607 is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated.
Byna-Lok™ Wire Tie
A masonry veneer that can be anchored to studs, existing masonry, concrete or steel with the Byna-Lok Wire Tie. Various Blok-Lok Anchor systems can be fitted with the Byna-Lok Wire Tie, as shown, affording easy and secure insertion of the continuous joint reinforcing wire. Masonry veneer walls are then reinforced with continuous wire.
Channel-Tee Seismic-Notch Anchor System
The Channel-Tee Seismic-Notch Anchor System is deal for use where unlimited vertical adjustability is preferred. The Continuous Channel is surface mounted to the back-up. The Seismic-Notch Anchor is then easily inserted into the channel anywhere along the vertical length to conveniently fit wherever the mortar joint lies. Continuous joint reinforcing wire is easily inserted into the seismic notches of each ancho
HB-200-X
The HB-200-X features three prongs that project from the back of the anchor. The prongs prevent positive wind-loads from crushing the wallboard by transferring these loads to the back of the stud.
HB-213 HS High-Strength Veneer Anchor System
HB-213-HS is a High-Strength Veneer Anchor System for heavy-duty applications. It combines the HB-213 and H&B’s Heavy Duty 1/4” diameter Compressed Leg Mighty-Lok® Hook, which is flattened and serrated to fit a 3/8” mortar joint satisfying code requirements for mortar bed thickness.
HB-213 Veneer Anchor
The HB-213 is an adjustable veneer anchor for metal stud and wood stud construction.
Thermal 2-Seal™ Tie
The THERMAL 2-SEAL™ TIE is an innovative single screw veneer tie for metal stud construction
Thermal Concrete 2-Seal™ Tie
The THERMAL CONCRETE 2-SEAL™ TIE features a screw with special alternating threads for use with concrete, CMU, wood stud, or brick backup.
X-SEAL™ Veneer Anchor
The X-SEAL™ Veneer Anchor is packed with more features than any other anchor on the market, owners, architects and masons can be confident in the performance of an “X-SEALED” metal stud/veneer wall. The X-SEAL™ Anchor addresses the problem of possible long-term deterioration of the insulation or wallboard. The pronged legs bridge the sheathing and abut the steel stud, affording independent, positive anchorage. Compression of the sheathing by positive loads is also prevented.
Masonry to Steel Stud
2-Seal™ Thermal Wing Nut Anchor
The Thermal 2-Seal™ Wing Nut Anchor is an innovative single screw veneer tie for metal stud construction, it features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.
2-Seal™ Tie
The 2-SEAL™ TIE is an innovative single screw veneer tie for metal stud construction
Fabricated from carbon steel with a premium quality organic polymer coating, the 2-SEAL™ TIE has a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier
This is an improvement over single barrel types which only seal at the insulation and render the vapor barrier susceptible to air and moisture infiltration if not precisely installed (perfectly perpendicular to the stud}
*For Stainless Steel, refer to 2-Seal™ Thermal Wing Nut Anchor.
BL-407 Veneer Anchor
The BL-407 is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated.
BL-607 Veneer Anchor
The BL-607 is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated.
HB-200-X
Brick Veneer Anchoring System for Metal Stud Construction featuring prongs to prevent positive wind-loads from crushing the wallboard. The HB-200-X features three prongs that project from the back of the anchor.
HB-213 HS High-Strength Veneer Anchor System
HB-213-HS is a High-Strength Veneer Anchor System for heavy-duty applications (Wide Cavities and/or High Wind Loads)
HB-213 Veneer Anchor
The HB-213 is an adjustable veneer anchor for metal stud and wood stud construction.
Thermal 2-Seal™ Tie
The THERMAL 2-SEAL™ TIE is an innovative single screw veneer tie for metal stud construction
X-SEAL™ Veneer Anchor
The X-SEAL™ Veneer Anchor is packed with more features than any other anchor on the market, owners, architects and masons can be confident in the performance of an “X-SEALED” metal stud/veneer wall. The X-SEAL™ Anchor addresses the problem of possible long-term deterioration of the insulation or wallboard. The pronged legs bridge the sheathing and abut the steel stud, affording independent, positive anchorage. Compression of the sheathing by positive loads is also prevented.
Masonry to Steel
354 Notched Corrugated Column Anchor
The 354 Notched Corrugated Column Anchor is for anchoring masonry to structural column when masonry is parallel to column flange
Adjustable Flex-O-Lok® Anchor Type A
Flex-O-Lok® – TYPE A is a wire weld-on anchor for adjustable ties.
Adjustable Flex-O-Lok® Anchor Type C
BL-360 Gripstay Channel
The BL-360 Gripstay Channel welds onto steel web or flange to accept any type of Gripstay Anchor.
BL-361 Gripstay Channel
The BL-361 Gripstay Channel is furnished with welded straps top and bottom for embedment into CMU backup. Accepts any Gripstay Anchor for masonry or stone.
BL-362 Gripstay Channel
The BL-362 Gripstay Channel furnished with built-in end clips for attachment to masonry. Accepts any Gripstay Anchor for masonry or stone.
BL-362-CX Gripstay Channel
The BL-362-CX is a continuous Gripstay Channel for use on backup block with insulation.
BL-363 Flexible Gripstay Anchor
The BL-363 – Flexible Gripstay Anchor permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of plane.
BL-364 Corrugated Flexible Gripstay Anchor
The BL-364 Corrugated Gripstay Anchor ties masonry to steel columns, concrete or existing walls. The gripstay head fits any Blok-Lok Gripstay Channel (tying masonry to steel columns, concrete, or existing walls).
BL-365 Bent Gripstay Anchor
The BL-365 Bent Gripstay Anchor ties masonry to steel columns, concrete or existing walls.
BLT-10
The BLT-10 is a hook-on type tie, available in two types, for tying masonry walls to structural steel. Can be spot welded to steel after installation.
BLT-9A
BLT-9A web ties are available to accommodate various wall widths. For tying masonry to structural columns with adjustable Flex-O-Lok® Anchors.
Masonry to Concrete
2-Seal™ - Concrete Seal Tie
Ties the masonry veneer to the substrate. The Concrete Seal Tie’s screw portion has special alternating threads making it suitable for use with concrete, CMU, wood stud or brick backup, and is provided with EPDM sealing washers.
Consists of a Concrete Seal Tie combined with the 2-Seal™ Byna-Lok Wire Tie
The special point affords easy installation into a predrilled hole.
2-Seal™ Thermal Concrete Wing Nut Anchor
The Thermal Concrete 2-Seal™ Wing Nut is an innovative single screw veneer tie for concrete, CMU, or wood stud construction. The anchor features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.
BL-303-SV Dovetail Seismic Anchor
The BL-303-SV is a modified dovetail anchor that complies with seismic codes, which call for continuous wire in the veneer to be an integral component of the anchor system. The Seismic Notch forms a seat to accommodate 9 gauge or 3/16″ diameter continuous wire.
BL-305 Dovetail Anchor Slot
BL-305 Dovetail Anchor Slot is for anchoring masonry to concrete with a dovetail anchor.
BL-360 Gripstay Channel
The BL-360 Gripstay Channel welds onto steel web or flange to accept any type of Gripstay Anchor.
BL-361 Gripstay Channel
The BL-361 Gripstay Channel is furnished with welded straps top and bottom for embedment into CMU backup. Accepts any Gripstay Anchor for masonry or stone.
BL-362 Gripstay Channel
The BL-362 Gripstay Channel furnished with built-in end clips for attachment to masonry. Accepts any Gripstay Anchor for masonry or stone.
BL-362-C Gripstay Channel
The BL-362-C is a Continuous Gripstay Channel for use on backup block. Accepts any Gripstay Anchor for masonry or stone
BL-362-CX Gripstay Channel
The BL-362-CX is a continuous Gripstay Channel for use on backup block with insulation.
BL-363 Flexible Gripstay Anchor
The BL-363 – Flexible Gripstay Anchor permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of plane.
BL-364 Corrugated Flexible Gripstay Anchor
The BL-364 Corrugated Gripstay Anchor ties masonry to steel columns, concrete or existing walls. The gripstay head fits any Blok-Lok Gripstay Channel (tying masonry to steel columns, concrete, or existing walls).
BL-365 Bent Gripstay Anchor
The BL-365 Bent Gripstay Anchor ties masonry to steel columns, concrete or existing walls.
BL-407 Veneer Anchor
The BL-407 is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated.
BLT-8 Dovetail Flex-O-Lok® Anchor
For anchoring masonry to concrete with a dovetail slot, the Flex-O-Lok® Ties provide lateral restraint while permitting horizontal and vertical movement (a seismic version is also available – see notes below).
HB-213 HS High-Strength Veneer Anchor System
HB-213-HS is a High-Strength Veneer Anchor System for heavy-duty applications. It combines the HB-213 and H&B’s Heavy Duty 1/4” diameter Compressed Leg Mighty-Lok® Hook, which is flattened and serrated to fit a 3/8” mortar joint satisfying code requirements for mortar bed thickness.
HB-213 Veneer Anchor
The The HB-213 is an adjustable veneer anchor for metal stud and wood stud construction.
Thermal Concrete 2-Seal™ Tie
The THERMAL CONCRETE 2-SEAL™ TIE features a screw with special alternating threads for use with concrete, CMU, wood stud, or brick backup.
Masonry to Masonry
2-Seal™ - Concrete Seal Tie
Ties the masonry veneer to the substrate. The Concrete Seal Tie’s screw portion has special alternating threads making it suitable for use with concrete, CMU, wood stud or brick backup, and is provided with EPDM sealing washers.
2-Seal™ Thermal Concrete Wing Nut Anchor
The Thermal Concrete 2-Seal™ Wing Nut is an innovative single screw veneer tie for concrete, CMU, or wood stud construction. The anchor features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.
BL-360 Gripstay Channel
The BL-360 Gripstay Channel welds onto steel web or flange to accept any type of Gripstay Anchor.
BL-361 Gripstay Channel
The BL-361 Gripstay Channel is furnished with welded straps top and bottom for embedment into CMU backup. Accepts any Gripstay Anchor for masonry or stone.
BL-362 Gripstay Channel
The BL-362 Gripstay Channel furnished with built-in end clips for attachment to masonry. Accepts any Gripstay Anchor for masonry or stone.
BL-362-C Gripstay Channel
The BL-362-C is a Continuous Gripstay Channel for use on backup block. Accepts any Gripstay Anchor for masonry or stone
BL-362-CX Gripstay Channel
The BL-362-CX is a continuous Gripstay Channel for use on backup block with insulation.
BL-363 Flexible Gripstay Anchor
The BL-363 – Flexible Gripstay Anchor permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of plane.
BL-364 Corrugated Flexible Gripstay Anchor
The BL-364 Corrugated Gripstay Anchor ties masonry to steel columns, concrete or existing walls. The gripstay head fits any Blok-Lok Gripstay Channel (tying masonry to steel columns, concrete, or existing walls).
BL-365 Bent Gripstay Anchor
The BL-365 Bent Gripstay Anchor ties masonry to steel columns, concrete or existing walls.
BL-407 Veneer Anchor
The BL-407 is a wire tie and plate combination system which provides adjustability, minimal free-play, strength, stiffness, positive connection, corrosion-resistance, and is test rated.
BL-507 Veneer Anchor
The BL-507 consists of a one-piece 16 gauge base plate embedded in the masonry backup.
BLT-1
BLT-1 acts as a strut and tension tie for two-wythe composite walls without restraining horizontal and vertical movement between wythes.
BLT-11Z
The BLT-11Z is a rigid partition anchor used for intersecting masonry walls.
BLT-2
BLT-2 is designed for cavity wall use. A special, welded bar forms a slot to accommodate the hook tie, thus restraining transverse movement of the wythes.
HB-213 HS High-Strength Veneer Anchor System
HB-213-HS is a High-Strength Veneer Anchor System for heavy-duty applications. It combines the HB-213 and H&B’s Heavy Duty 1/4” diameter Compressed Leg Mighty-Lok® Hook, which is flattened and serrated to fit a 3/8” mortar joint satisfying code requirements for mortar bed thickness.
HB-213 Veneer Anchor
The HB-213 is an adjustable veneer anchor for metal stud and wood stud construction.
MWT - Mesh Wall Tie
The MWT – Mesh Wall Tie is for bonding intersecting masonry walls and conforms to ASTM A 185.
Thermal Concrete 2-Seal™ Tie
The THERMAL CONCRETE 2-SEAL™ TIE features a screw with special alternating threads for use with concrete, CMU, wood stud, or brick backup.
Spira-Lok® Helical Wall Tie System
Spira-Lok® is a one-piece, flexible stainless steel wall tie for pinning masonry to new or existing walls. Also suitable for temporary support for lintel and shelf angle replacement. The dry-set technique may involve various tie diameters, drill bits and installation tools.
- Only a small diameter pilot hole required.
- No toxic adhesives or expansion devices.
- Site-tested immediately after installation.
- Functional in a wide variety of building materials.
- Able to withstand cyclic loading.
- Accommodates differential movements between materials.
- Does not stress or fracture fragile substrates.
