Advanced Glazing Technology for Maximum Control, Comfort & Efficiency Advanced glazing allows you to harness all the positive benefits of natural daylight without suffering the undesirable effects such as excessive heat gain, glare and fading.

An Economical Solution to Your Custom Low Slope Canopy Designs

Features:

• Custom canopy designs for shelters, entrances, covered and enclosed walkways
• Lightweight, high impact resistant multiwall polycarbonate
• No exposed fasteners, gaskets, sealants or horizontal joints
• Available in various panel colors and configurations
• UV stable
• Simple installation
• Pleasant natural daylight transmission

Wasco’s Cluster Systems (CL, CLDD) allow for the creation of dramatic skylighting over large enclosures, utilizing site-built structural grid supports on flat roof applications.

An Extruded Gutter configuration (EG, DDEG) is available for applications in which extra water carrying capacity is required or if continuous vaults are to be joined.

Cluster and Extruded Gutter Systems require a minimum of ¼” per foot slope to properly drain water.

A dramatic accent above stairs or a rugged canopy for a covered walkway

These circular, curb-mounted domes have been updated to meet today’s expectations and specifications. With structural improvements like incorporating a vinyl curb and rolled aluminum retainers, Circular Units have reduced condensation and increased thermal performance compared to their earlier counterparts.

Wasco’s Continuous Vault system is a double pitch structure with a metal frame offerring virtually unlimited design possibilities for a fully customized configuration. Vaults are available with Lumira® Aerogel filled multiwall polycarbonate laylite panels for improved thermal performance and excellent light diffusion.

• Ribs may be spaced at 48″ max o.c.
• Vaults are glazed with your choice of acrylic, polycarbonate or impact modified acrylic in clear, tinted and thermal translucent options.

Wasco curb mount or deck mount traditional domed units offer outstanding lighting and thermal performance in a versatile range of dome or pyramid styles. These energy saving sky windows offer the highest performance in a fixed unit plastic glazed skylight.

Wasco’s double pitch metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Classic and Pinnacle framing systems support spans of up to 40’ wide and unlimited lengths. Available with a wide choice of high performance glazing and finish options.

Quicker Installation
Components always assemble the same consistent way. Sills encompass the entire perimeter so installers rely less on sealants.

Leak-Resistant
Continuous sill enclosure around skylight perimeter helps reduce air infiltration through weep holes and effectively guards against water intrusion. Thermally-enhanced construction.

Concealed Fasteners
Through bolt fastening system further eases installation, providing a clean, aesthetically pleasing look on both the interior and exterior.

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our double pitch S-Series skylights support spans of up to 40′ wide and unlimited lengths.

The S-Series is a high-performance energy efficient system that provides superior diffused natural daylighting. Designs include single or double glazed translucent multiwall polycarbonate panels that allow fully customizable control over light transmission, solar heat gain, and R-value. Lumira^® aerogel filled panels are available for even greater thermal performance.

Wasco’s S-Series reduces labor and material costs in new construction, retrofit, or renovation projects for a cost-effective translucent daylighting system.

• Dry glazed translucent single or double multiwall polycarbonate panel system
• Glare free, excellent diffused natural daylighting
• Extensive glazing color and customized performance options
• Double glazed U-factors of 0.19 to 0.11 and light transmission of 53% to 12%
• Excellent UV protection
• Available in a wide range of frame finish options

EcoSky Series Thermally Efficient Unit Skylights
Our Acrylite^® Satin Sky^® 2 glazing is an innovative acrylic sheet that is a powerful sun reflector which greatly reduces solar heat gain, making it ideal for both hot and cold climates. Satin Sky 2 is infrared blocking, light diffusing, and 100% haze white.

EcoSky3 units are available with Lumira^® aerogel filled multiwall polycarbonate laylites for improved thermal performance and excellent light diffusion with SHGC of .31 and a high VLT for maximum usable LUX delivery.

Wasco’s extended pyramid metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Classic and Pinnacle framing systems support spans of up to 40’ wide. Available with a wide choice of high performance glazing and finish options.

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our extended pyramid S-Series skylights support spans of up to 40′ wide and unlimited lengths.

The S-Series is a high-performance energy efficient system that provides superior diffused natural daylighting. Designs include single or double glazed translucent multiwall polycarbonate panels that allow fully customizable control over light transmission, solar heat gain, and R-value. Lumira^® aerogel filled panels are available for even greater thermal performance.

Wasco’s S-Series reduces labor and material costs in new construction, retrofit, or renovation projects for a cost-effective translucent daylighting system.

Monolithic polycarbonate canopy system

Features:

• Monolithic polycarbonate panel thickness of 3/8″
• Up to 250 times impact strength of glass
• Extruded aluminum edge guard at ends and sides as needed
• Multiple structural options for design flexibility
• Custom panel shapes available
• Standard colors clear and white, other colors available
• Architectural paint and anodized finishes available
• Custom engineered for limitless design options

Design:

• Rafter spacing up to 2′ on center
• Up to 20′ continuous length without purlins
• Minimum slope of 1/2″ in 12: Up to 3″ side edge overhang
• Support structure by others
• Consult sales representative for other span or framing requirements

LumiWall 40 – Translucent 40mm Multiwall Polycarbonate Wall Panel System

• Features:

  • Lightweight interlocking wall panel system with large span capabilities
  • Superior U-value, light transmission, SHGC, impact resistance*
  • Dry glaze system – no sealants required on panels
  • Thermally broken aluminum frame
  • Unlimited height and width
  • Easily installed by commercial contractors
  • Panels are coextruded with a layer of UV inhibitor
  • Maintain its shape, color, and strength
  • Requires no maintenance
  • NFRC Certified (CPD# WPC-A-12)
  • 10 Year Warranty

Wasco’s lean-to metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Pinnacle framing systems support spans of up to 22’ wide and unlimited lengths. Available with a wide choice of high performance glazing and finish options.

Framing Option – Pinnacle System

For spectacular large-scale custom structures spanning up to 40 feet, at any pitch you desire between 15° and 60°.

With its variable-pitch hinge design, the Pinnacle Systems offer you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Fast on-site assembly and installation. Spans up to 40 feet, at any pitch you desire between 15° and 60°.

• Fewer parts, faster on-site assembly
• Narrow profiles provide clean lines
• Larger span capability
• Available in Hurricane Resistant

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our lean-to S-Series skylights support spans of up to 22′ wide and unlimited lengths.

The S-Series is a high-performance energy efficient system that provides superior diffused natural daylighting. Designs include single or double glazed translucent multiwall polycarbonate panels that allow fully customizable control over light transmission, solar heat gain, and R-alue. Lumira^® aerogel filled panels are available for even greater thermal performance.

Wasco’s S-Series reduces labor and material costs in new construction, retrofit, or renovation projects for a cost-effective translucent daylighting system.

Available with a wide choice of high performance glazing and finish options, Wasco’s low profile skylight structures offer virtually unlimited design possibilities for a fully customized configuration.

Wasco skylights with Lumira Aerogel are the highest performing daylighting products available on the market today. These lightweight polycarbonate panel skylights are an excellent value and can substantially reduce energy costs and provide a great return on investment. Transform your daylighting applications with environmentally friendly sustainable, energy-efficient skylight designs.

Benefits of Diffused Daylighting:
Increasing natural daylighting in buildings has long been a goal in architectural design. Studies have shown that people thrive in natural lighting; they’re healthier, happier, and more productive. Also, increased daylighting designs are proven to have a positive effects such as:

• Increased productivity
• Increase in sales up to 40%
• Shown to increase learning rates (20-26%)
• Decreases absenteeism
• Promotes a healthier, happier work and educational environment

Applications:  Schools, offices, warehouses, retail environments, grocery stores etc.

What is Lumira® Aerogel?

Wasco’s octagonal pyramid metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Classic and Pinnacle framing systems support spans of up to 40’ wide. Available with a wide choice of high performance glazing and finish options.

Available in both Classic System and Pinnacle System framing options.

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our octagonal pyramid S-Series skylights support spans of up to 40′ wide.

The S-Series is a high-performance energy efficient system that provides superior diffused natural daylighting. Designs include single or double glazed translucent multiwall polycarbonate panels that allow fully customizable control over light transmission, solar heat gain, and R-value. Lumira^® aerogel filled panels are available for even greater thermal performance.

Wasco’s S-Series reduces labor and material costs in new construction, retrofit, or renovation projects for a cost-effective translucent daylighting system.

ECONOMICAL AND CONVENIENT ALTERNATIVE TO SITE BUILT CURBS

Wasco’s prefabricated curbs are fully assembled to reduce installation time and cost, with no chance of missing parts and no field assembly. Available in insulated and non-insulated models as structural or non-structural.

Choose steel (CCA6 or CCA3) or sheet aluminum (CCAW) construction.

Models CCA6 and CCA3 curbs come standard with an impact tested security screen that is fabricated in a 6″ x 6″ welded grid pattern using 3/16″ cold-rolled galvanized steel rod, with an optional 4″ x 4″ grid for California. The optional structural 14 gauge steel curb eliminates the need for costly structural reinforcement. CCA3 curbs are constructed with fiberglass insulation (R-value >5).

Model CCAW thermally enhanced curbs are constructed with 1-1/2″ rigid insulation (R-value 5.8).

Product Overview

Wasco’s safety screens fit any new or existing unit skylight. They are lightweight and easy to install. They can be installed permanently over units or as temporary protection on construction sites.^*

• Easier Installation
• 0.19” Gage 4″ x 4″ Welded Galvanized Steel Wire Mesh
• Can Be Used as Temporary Protection^*
• Adjustment Range of 4″ In Width for Easy Installation

_{^{*Must be secured to roof or curb for temporary use.}}

Standard Shrink-Out Smoke Vents
Shrink-Out Smoke Vents are gravity operated acrylic double domes designed to automatically shrink and fall out in the event of a fire. These units are generally used when buildings have no sprinkler system or they employ a standard sprinkler system designed to operate at 165 degrees.

ESFR Rated Shrink-Out Smoke Vents
These units are equipped with a fusible link activated release mechanism which will ensure the unit does not activate prior to reaching the fusible link temperature. These units are designed for use with an ESFR (Early Suppression, Fast Response) sprinkler system.

Fusible Link for Controlled Venting:

• Option for Deck Mount (CSO) and Curb Mount (CSOS) Units
• Incorporates a 360° or 500° UL Listed Fusible Link for Specific Control of Venting
• Allows Unit to Be Used with ESFR (Early Suppression Fast Response) Sprinkler Systems
• UL Tested and Approved
• Less Expensive Alternative to Mechanical Venting
• Aluminum retainer frame finish: Mill (standard), anodized, Kynar 500, baked enamel (more information)
• Safety screens recommended.

Wasco’s single pitch metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Pinnacle framing systems support spans of up to 22’ wide. Available with a wide choice of high performance glazing and finish options.

Pinnacle System Framing Option available

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our single pitch S-Series skylights support spans of up to 22′ wide and unlimited lengths.

• Dry glazed translucent single or double multiwall polycarbonate panel system
• Glare free, excellent diffused natural daylighting
• Extensive glazing color and customized performance options
• Double glazed U-factors of 0.19 to 0.11 and light transmission of 53% to 12%
• Excellent UV protection
• Available in a wide range of frame finish options

Maximized Daylighting and Thermal Performance – Energy Efficient Single Light up to 32 Square Feet!

SkyMax doubles the square footage of standard size flat glass unit skylights without loss of thermal efficiency.

SkyMax combines the thermal performance of our smaller vinyl frame unit skylights with the structural benefits of our larger aluminum framed structural skylights.

SkyMax’s one piece extruded vinyl curb incorporates a condensation channel, eliminating the need for weep holes. This, combined with high-end glazing options, maximizes its thermal performance.

The SkyMax’s vinyl frame is structurally reinforced with aluminum, allowing large single light spans.

• Single Light Up to 32 Square Feet – Ten Feet at Longest Dimension
• Meets Most Local Energy Codes and Can Meet IECC in All Climate Zones^*
• 10 Year Warranty
• For Flat or Sloped Roof 1° – 60° (1/4:12 – 20:12)

Acrylic Dome Unit Skylight System in Widths up to 8′ and Unlimited Lengths

Wasco’s Thermally Broken Tandem Unit System (CTMD) offers virtually unlimited design possibilities for a fully customized configuration.

The CTMD allows domes or dome assemblies to be combined side by side in a single frame. Domes are separated by a structural purlin and are available single or double glazed with domed or pyramid shapes.

• For flat roof applications
• Curb mount – for use on minimum 1½” thick site-built or prefabricated curbs
• Thermally broken extruded aluminum curb frame with integral condensation gutter and counter-flashing downward leg
• Maximum dome sizes of 8′ x 8′
• Equal purlin spacing (equal dome sizes)
• Maximum unsupported purlin width of 5′ @ 30 psf positive loading, structural support required for 5′ and above @ 30 psf positive loading up to 8′ widths
• Units ship assembled and glazed in sections up to 19’6″
• Safety screens are recommended.

Wasco’s structural ridge metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Pinnacle framing systems support spans of up to 40’ wide and unlimited lengths. Available with a wide choice of high performance glazing and finish options.

Pinnacle System framing option for spectacular large-scale custom structures spanning up to 40 feet, at any pitch you desire between 15° and 60°.

With its variable-pitch hinge design, the Pinnacle Systems offer you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Fast on-site assembly and installation. Spans up to 40 feet, at any pitch you desire between 15° and 60°.

• Fewer parts, faster on-site assembly
• Narrow profiles provide clean lines
• Larger span capability
• Available in Hurricane Resistant

Quicker Installation
Components always assemble the same consistent way. Sills encompass the entire perimeter so installers rely less on sealants.

Leak-Resistant
Continuous sill enclosure around skylight perimeter helps reduce air infiltration through weep holes and effectively guards against water intrusion. Thermally-enhanced construction.

Concealed Fasteners
Through bolt fastening system further eases installation, providing a clean, aesthetically pleasing look on both the interior and exterior.

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our structural ridge S-Series skylights support spans of up to 40′ wide and unlimited lengths.

The S-Series is a high-performance energy efficient system that provides superior diffused natural daylighting. Designs include single or double glazed translucent multiwall polycarbonate panels that allow fully customizable control over light transmission, solar heat gain, and R-value. Lumira^® aerogel filled panels are available for even greater thermal performance.

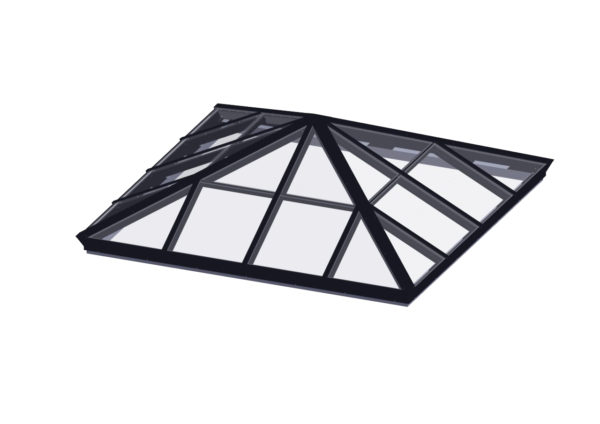

Wasco’s square pyramid metal-framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our Classic and Pinnacle framing systems support spans of up to 40’ wide. Available with a wide choice of high performance glazing and finish options.

Wasco’s Horizon S-Series metal-framed translucent skylight structures offer virtually unlimited design possibilities for a fully customized configuration. Our square pyramid S-Series skylights support spans of up to 40′ wide.
